Details

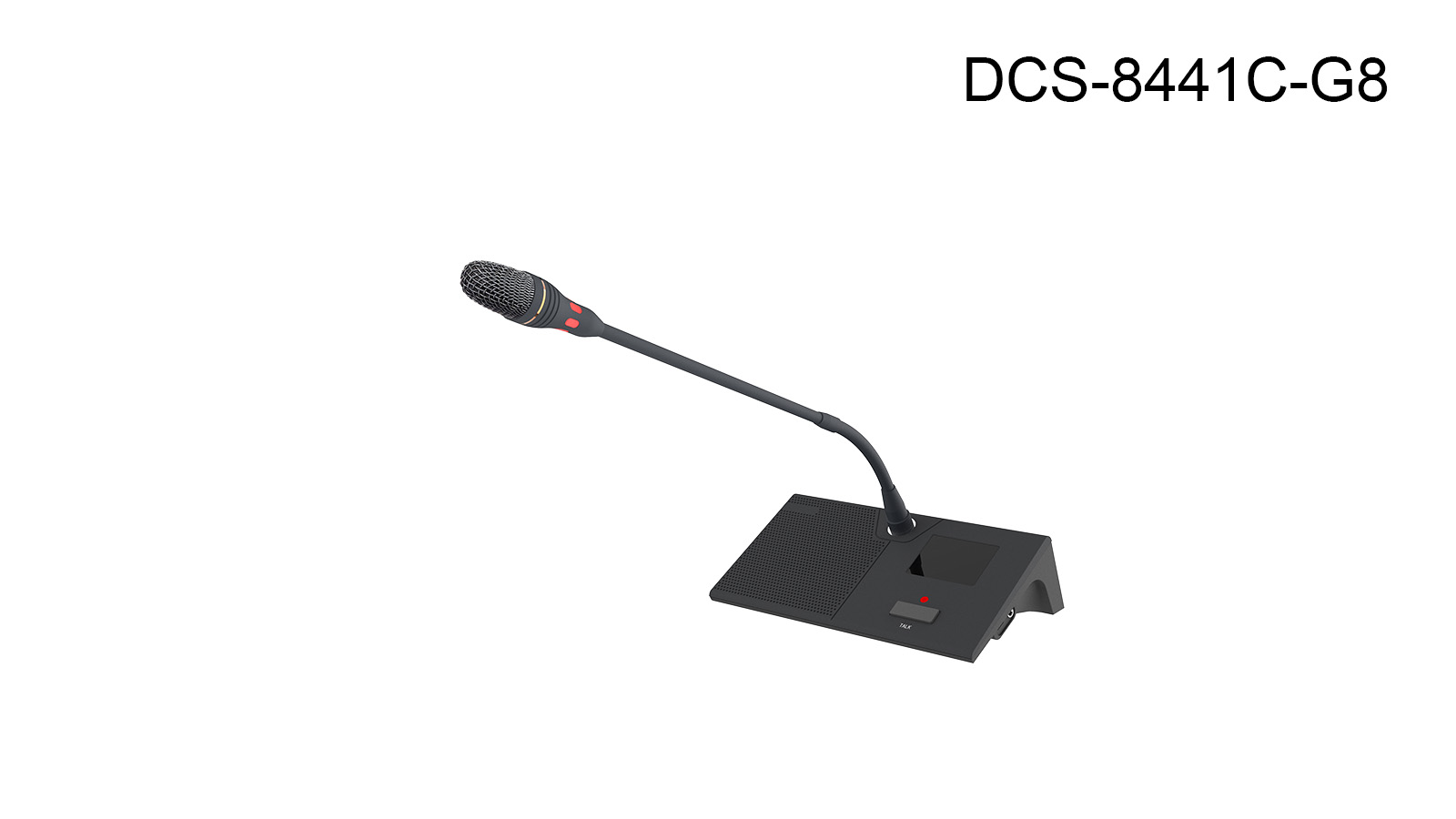

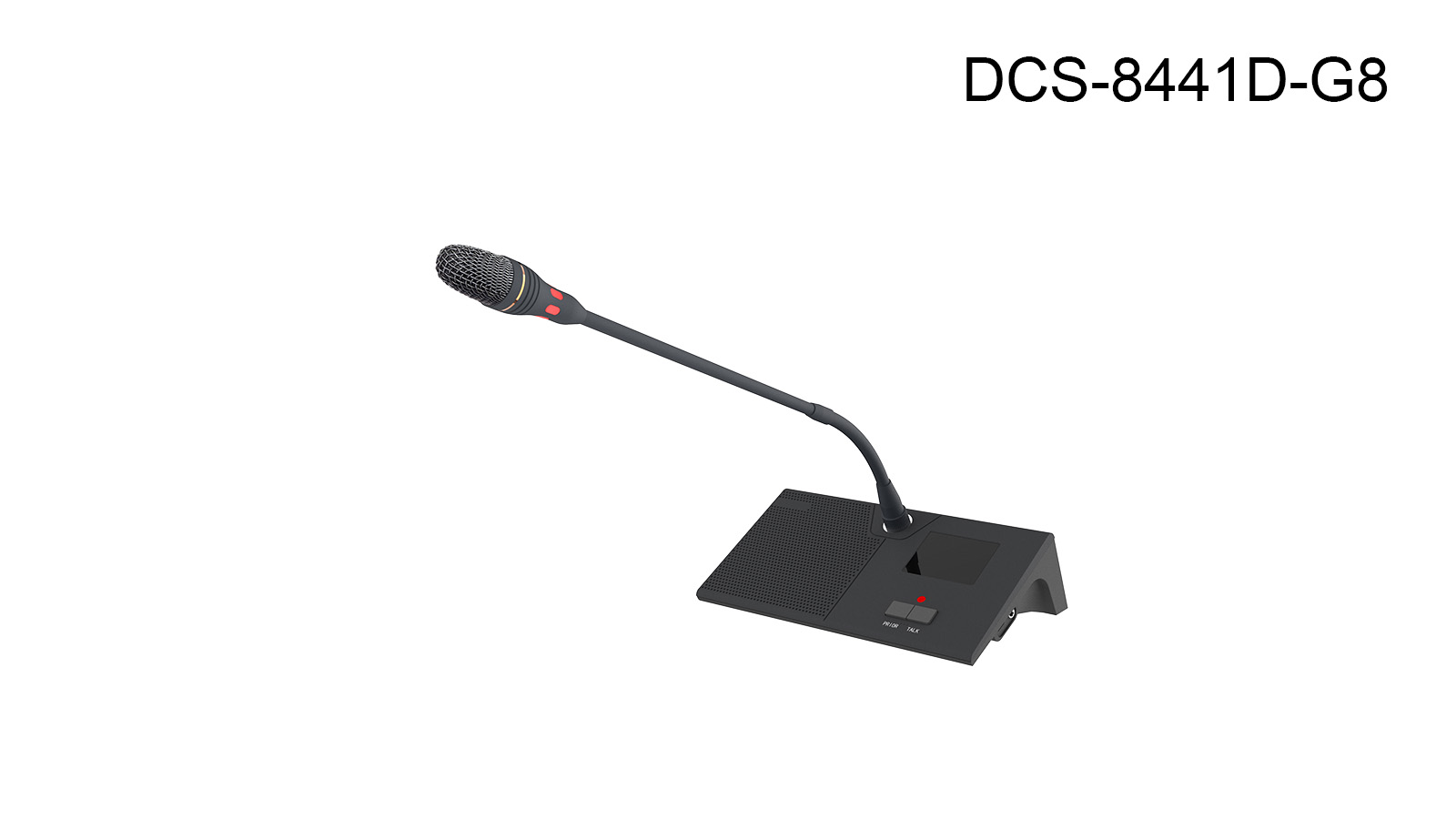

Product Features: ◆ Adopts new network pure digital technology, ultra-large mechanical mute switch design, and high-sensitivity microphone core design, with a pickup distance of up to 80cm. ◆ 390mm metal gooseneck microphone pole design. ★ The microphone pole features a red matte indicator light to show the speaking status. When the red light ring is on, it indicates the unit is speaking. ◆ Equipped with a 2.4-inch full-color screen to display various microphone information and status. ◆ Built-in 1 piece of 9.7mm pure gold film microphone core with high sensitivity, supporting a pickup distance of up to 80cm. ◆ The chairman unit has the priority function to fully control the meeting order. The unit can be placed at any position in the loop (available only for the chairman microphone). ◆ Each conference microphone has a unique ID number, which supports manual modification. ◆ Supports camera tracking: when used with a camera, automatic camera tracking can be realized after setup via the conference control host or PC control software. ◆ When used with the host, it supports 4 speaking modes: first-in first-out mode, restricted speaking mode, time-limited speaking mode, and chairman permission mode. Each mode supports voice activation and voice control to turn on the microphone. ◆ Any 1 to 6 delegate microphones (excluding the chairman unit) can be turned on simultaneously. ★ Microphone gain is adjustable, and the volume of any microphone can be adjusted via PC software. ★ Supports real-time Beijing time display with a perpetual calendar function, showing year, date, and day of the week. It supports time and date adjustment when the microphone is disconnected from the host, as well as remote network time synchronization. ★ Supports speaking timing and speaking countdown functions. ★ Supports switching between Chinese and English operation interfaces, and unified system language setting via network or central control. ★ Built-in 3.5mm dual-channel headphone jack with volume adjustment, which can also be used for monitoring or recording output. ★ Equipped with a 3W built-in speaker, which automatically mutes when speaking. ◆ The chairman unit can be turned on freely without being limited by the number of active microphones. ★ The microphone identity can be set independently, and can be switched between delegate and chairman via host settings for flexible use to meet high-end requirements (Note: The button component needs to be replaced to realize the chairman priority function). ◆ Strong anti-mobile phone RF interference performance. ◆ The chairman microphone has a dedicated chairman priority button to turn off active delegate units (exclusive to the chairman microphone). ★ Unique innovative self-detection function. With software support, it can automatically complete microphone identity, quantity, and audio detection, simplifying pre-meeting preparation and ensuring more reliable meetings (Requires PC software support). Technical Parameters: ■ Microphone polar pattern: Supercardioid directional electret condenser microphone ■ Pickup capsule: 1 × 9.7mm diameter gold-plated condenser capsule ■ Audio connection: 1 digital daisy-chain microphone ■ Frequency response: 80Hz～16KHz ■ Output impedance: <200Ω ■ Sensitivity: -36dB ■ Maximum sound pressure level: 110dB ■ Signal-to-noise ratio: >70dB(A) ■ THD: <0.1% ■ Maximum power consumption: 2.5W ■ Color: Dark gray ■ Display size: 2.4-inch color screen ■ Display resolution: 320×240 ■ Installation method: Desktop type ■ Number of microphone poles: 1 × microphone pole ■ Microphone pole size (L): 390mm ■ Base dimensions (L×W×H): 107.5×145.9×50.8mm ■ Net weight: 0.90kg Note：Final specifications subject to the quotation.
