Details

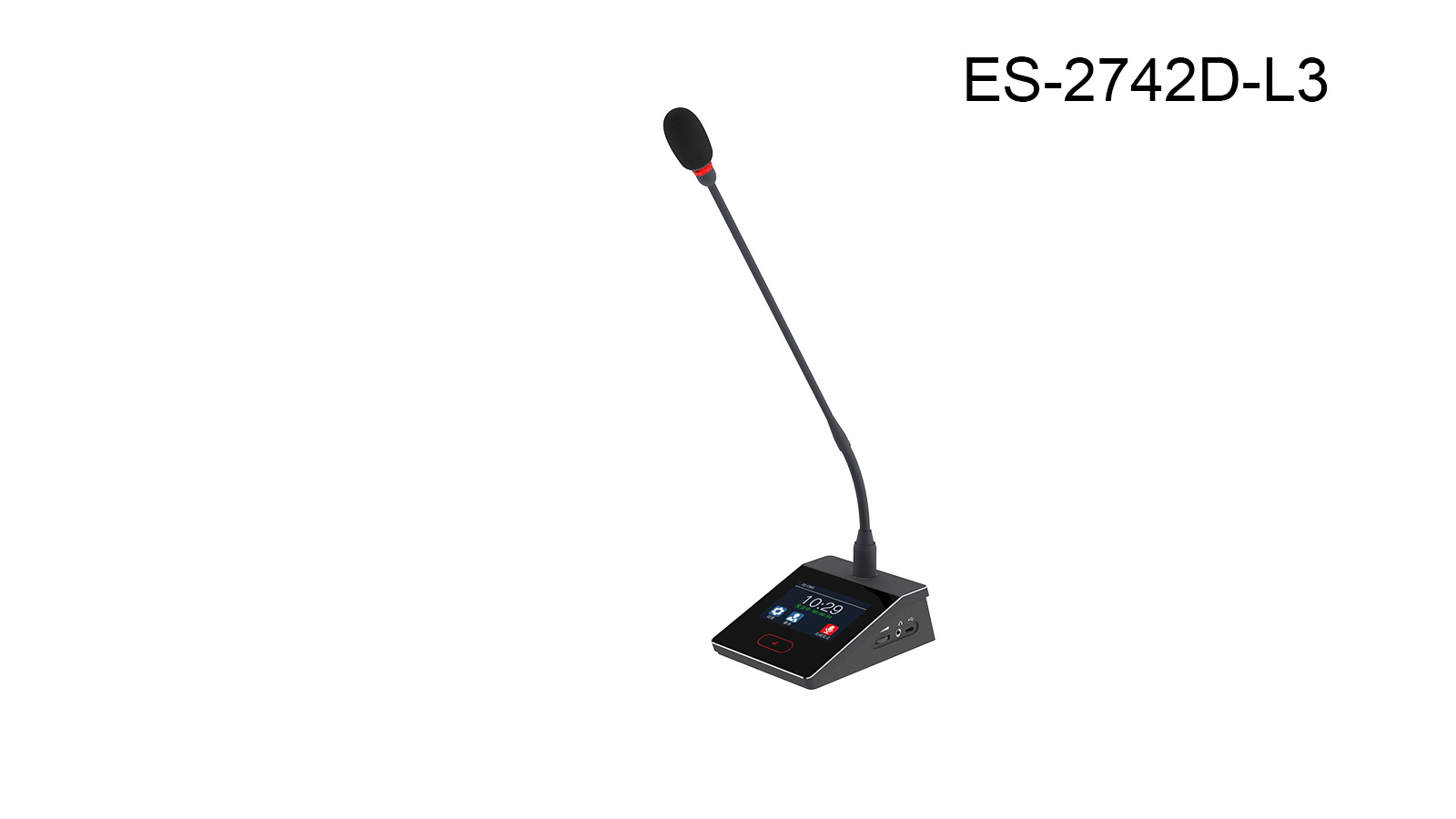

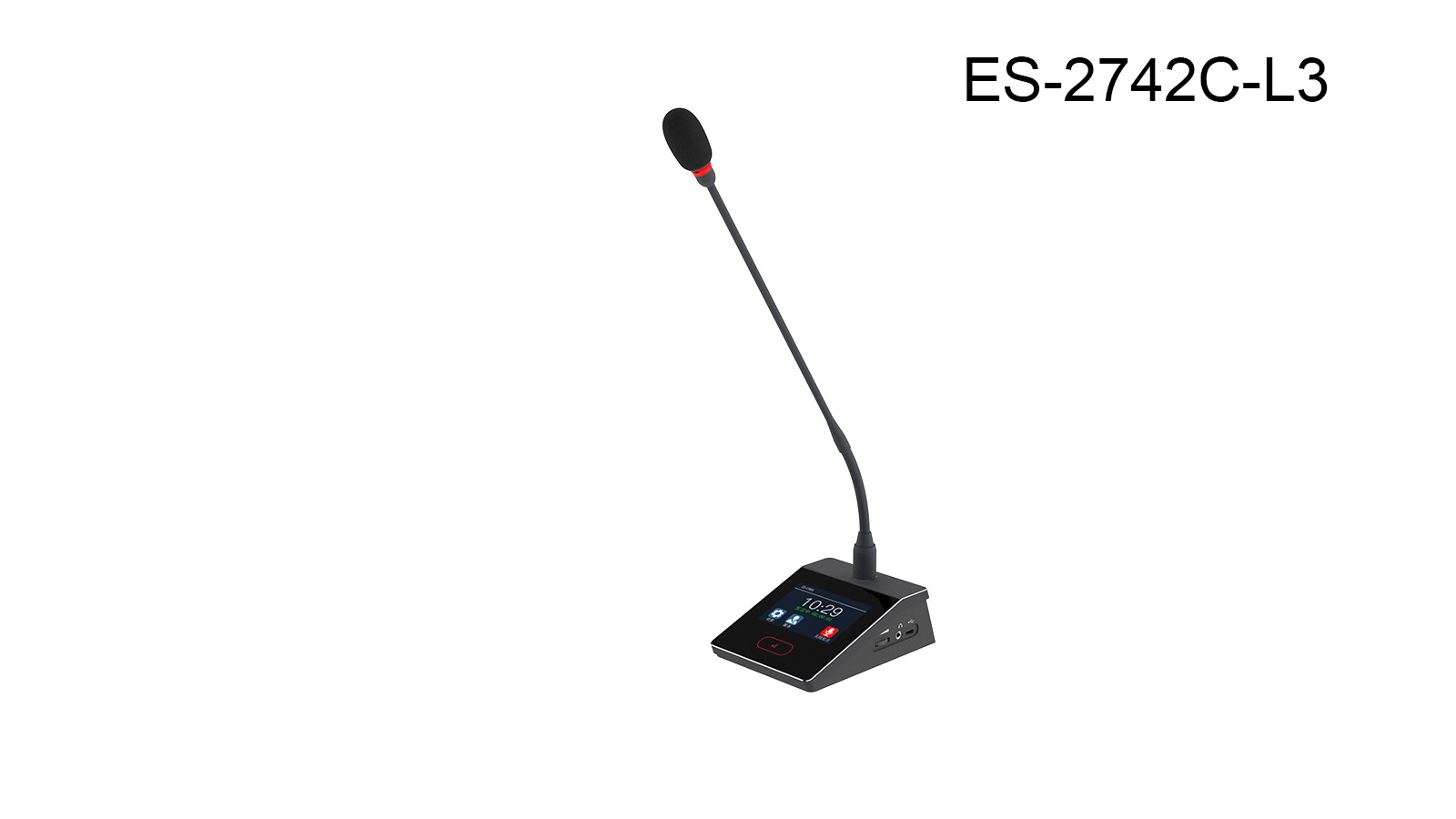

Product Features ◆ Adopts brand-new network pure digital technology, extra-large touch silent switch design, and high-sensitivity microphone core, with a sound pickup distance of up to 80cm. ◆ Features a 390mm metal gooseneck microphone boom. ★ Red matte indicator light on the microphone boom to indicate speaking status; the red light ring lights up when speaking. ◆ Brand-new touch control technology with a 3.5-inch full-color capacitive touch screen, displaying various information and status of the microphone. ◆ Built-in one 9.7mm gold-plated diaphragm microphone core, high-sensitivity design with a sound pickup distance of up to 80cm. ◆ The chairman unit has a priority function to fully control the conference order and can be placed at any position in the loop (only for chairman microphones). ◆ Each conference microphone has a unique ID number that supports manual modification. ◆ Supports video tracking; with a camera, automatic speaking and camera tracking can be realized after setting via the conference control host or PC control software. ◆ Working with the host, it supports 4 speaking modes: FIFO mode, limited speaking mode, timed speaking mode, and chairman approval mode. All modes support voice activation and sound-controlled microphone activation. ◆ Any 1 to 6 delegate microphones (except the chairman unit) can be turned on simultaneously. ★ Supports APP and PC control for microphone on/off, volume adjustment, and online monitoring. ★ Supports system sign-in function; microphones can complete attendee check-in. ★ Supports voting and polling functions. ★ Microphone gain is adjustable; the volume of any microphone can be adjusted via PC software. ★ Supports real-time Beijing time display with a perpetual calendar function, showing year, date, and weekday. Time and date can be adjusted without connecting to the host, or synchronized remotely via network time. ★ Supports speaking timer and countdown timer. ★ Supports Chinese-English UI switching; system language can be uniformly set via network or central control. ★ Supports attendee service request function, including requests for "pen, paper, water, and attendant". Equipped with dedicated PC software connected to the host, displaying no less than 10 service requests simultaneously. ★ Each unit supports dual backup speaking buttons: physical speaking button on the panel and touch screen speaking button. ◆ The unit is equipped with a TYPE-C charging port. ◆ The chairman unit can be activated freely without being limited by the number of active microphones. ★ Microphone identity can be set manually via the host, switching freely between delegate and chairman for flexible use to meet high-end demands. (Button assembly replacement is required to realize the chairman priority function.) ◆ Wireless transmission frequency band: 5.2–5.8GHz, supporting manual selection of connected AP. ◆ Built-in 3.7V 3200mAh lithium battery with a maximum speaking time of 8 hours. ◆ Excellent resistance to mobile phone RF interference. ★ The chairman microphone is equipped with a chairman priority button, which can turn off active delegate units. (Exclusive to chairman microphones.) ★ Unique innovative self-test function; with supporting software, it can automatically complete button, voting, and audio testing, simplifying pre-conference preparation and ensuring reliable conference operation. (Requires APP or PC software support.) ★ Supports customized main interface, providing personalized interface customization for customers. Technical Specifications ■ Microphone Polar Pattern: Super-cardioid electret condenser microphone ■ Capsule: 1 × 9.7mm diameter gold-plated condenser capsule ■ Audio Circuit: 1-channel digital hand-in-hand microphone ■ Frequency Response: 80Hz ~ 16kHz ■ Output Impedance: < 200Ω ■ Sensitivity: -36dB ■ Maximum SPL: 110dB ■ Signal-to-Noise Ratio: > 70dB(A) ■ THD: < 0.1% ■ Maximum Power Consumption: 3W ■ Color: Dark Gray ■ Display Size: 3.5-inch color screen ■ Display Resolution: 480 × 320 ■ Power Supply: 3.7V 3200mAh lithium battery ■ Installation: Desktop type ■ Number of Microphone Booms: 1 boom ■ Microphone Boom Length (L): 390mm ■ Base Dimensions (L×W×H): 107.5 × 145.9 × 50.8mm ■ Net Weight: 0.90kg Note：The final specifications shall be subject to the quotation.
